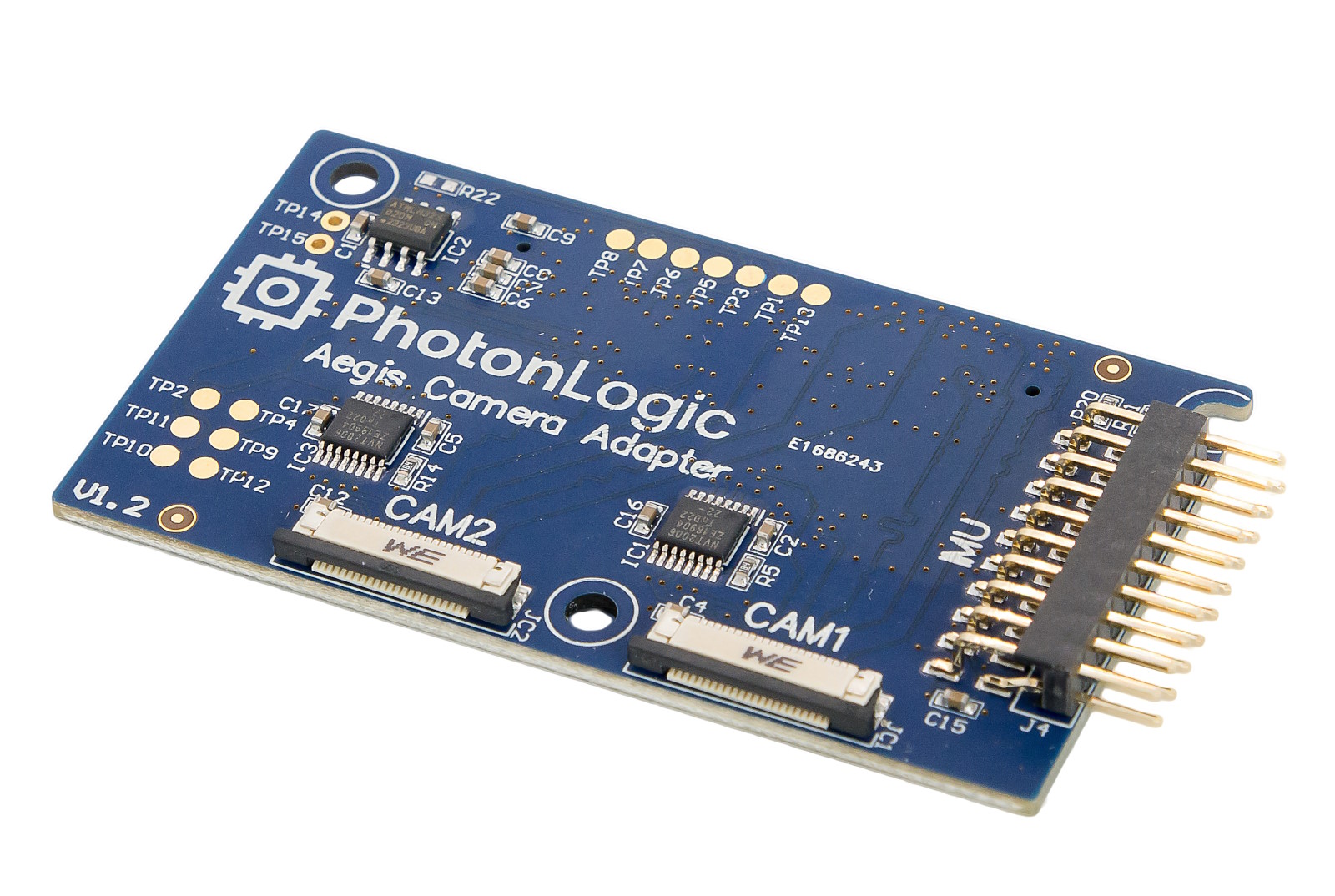

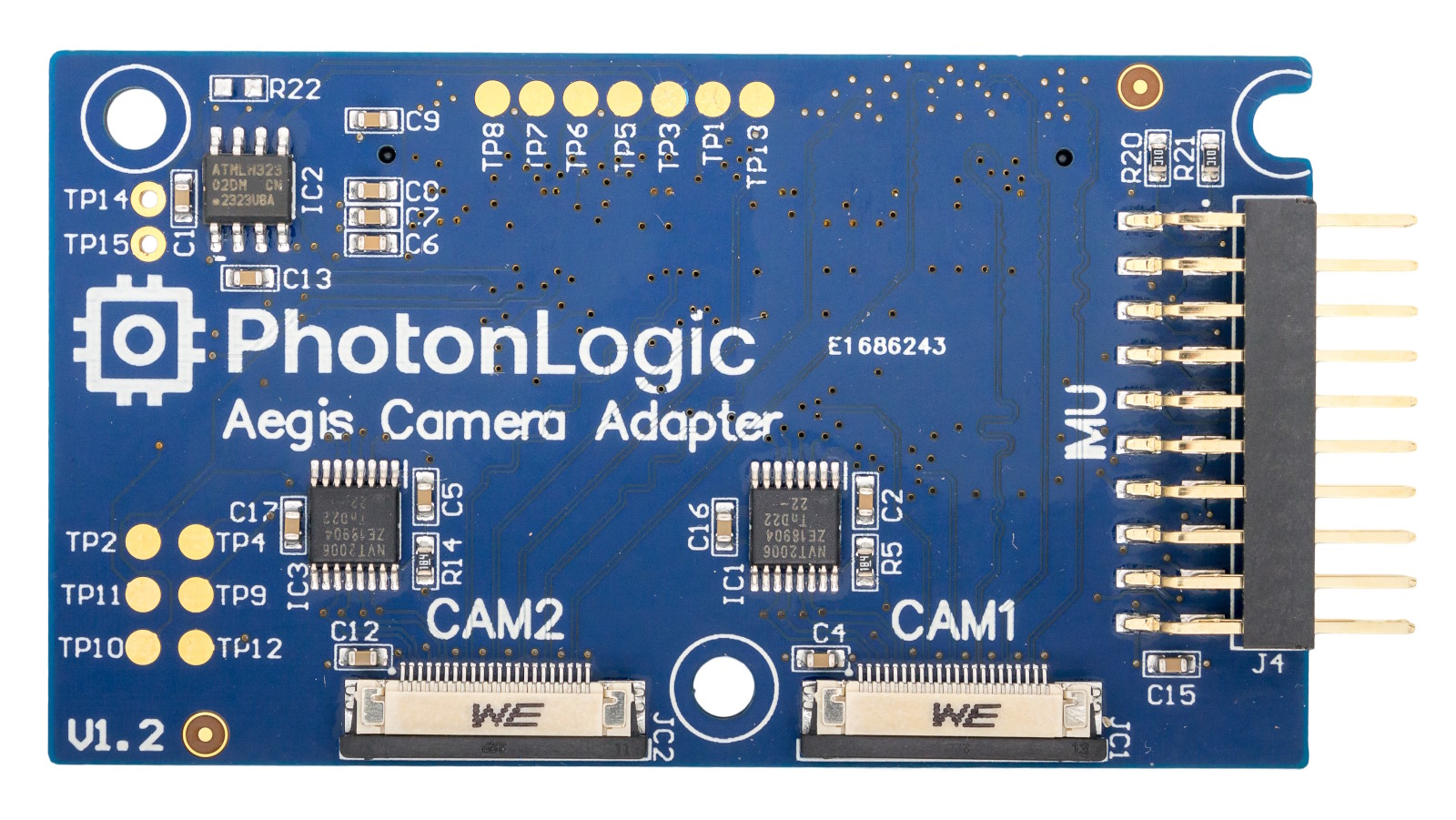

Aegis Camera Adapter is designed to facilitate the connection of up to two MIPI CSI-2 cameras with additional peripherals, such as an IMU, to the Lattice Holoscan Sensor Bridge board, or an Nvidia Jetson AGX Orin/AGX Xavier development kit.
The board routes two MIPI CSI-2 interfaces through Raspberry Pi 22-pin flat-flex connectors and includes an expansion header that provides access to GPIO, I²C, and SPI signals. The header's pin-out allows direct interfacing with the TDK InvenSense ICM-42688-P IMU development board.
Aegis is intended for evaluation, development, and prototyping of embedded vision systems. It simplifies hardware integration for applications that require camera input along with auxiliary sensor data, such as visual-inertial odometry, stereo vision, or general-purpose image capture.
The adapter is supplied with mounting hardware and is designed for use in a lab or engineering environment. Proper ESD precautions should be observed when handling the device.
Key Features
Key Features:
- Dual MIPI CSI-2 Camera Support
Two 22-pin FPC connectors compatible with standard Raspberry Pi-style camera modules. - Compatible with Multiple Platforms
Designed for the Lattice Holoscan Sensor Bridge and also fits Nvidia Jetson AGX Orin and Xavier development kits. - Expansion Header
Provides GPIO, I²C, and SPI signals for connecting additional peripherals. - IMU Interface
Includes connector for TDK ICM-42688-P IMU development board. - Secure and Compact Mounting
Stackable design with included spacers and screws for mechanical alignment.
Applications:
-
Stereo Vision Prototyping
-
Embedded Vision Development
-
Visual-Inertial Odometry
-
Sensor Fusion Research
-
Robotics and Autonomous Systems
Technical specs
Technical Specifications:
| Supported cameras | 2x MIPI CSI-2 FPC connectors (22-pin, 4 lanes, 2.5 Gb/s per lane) |

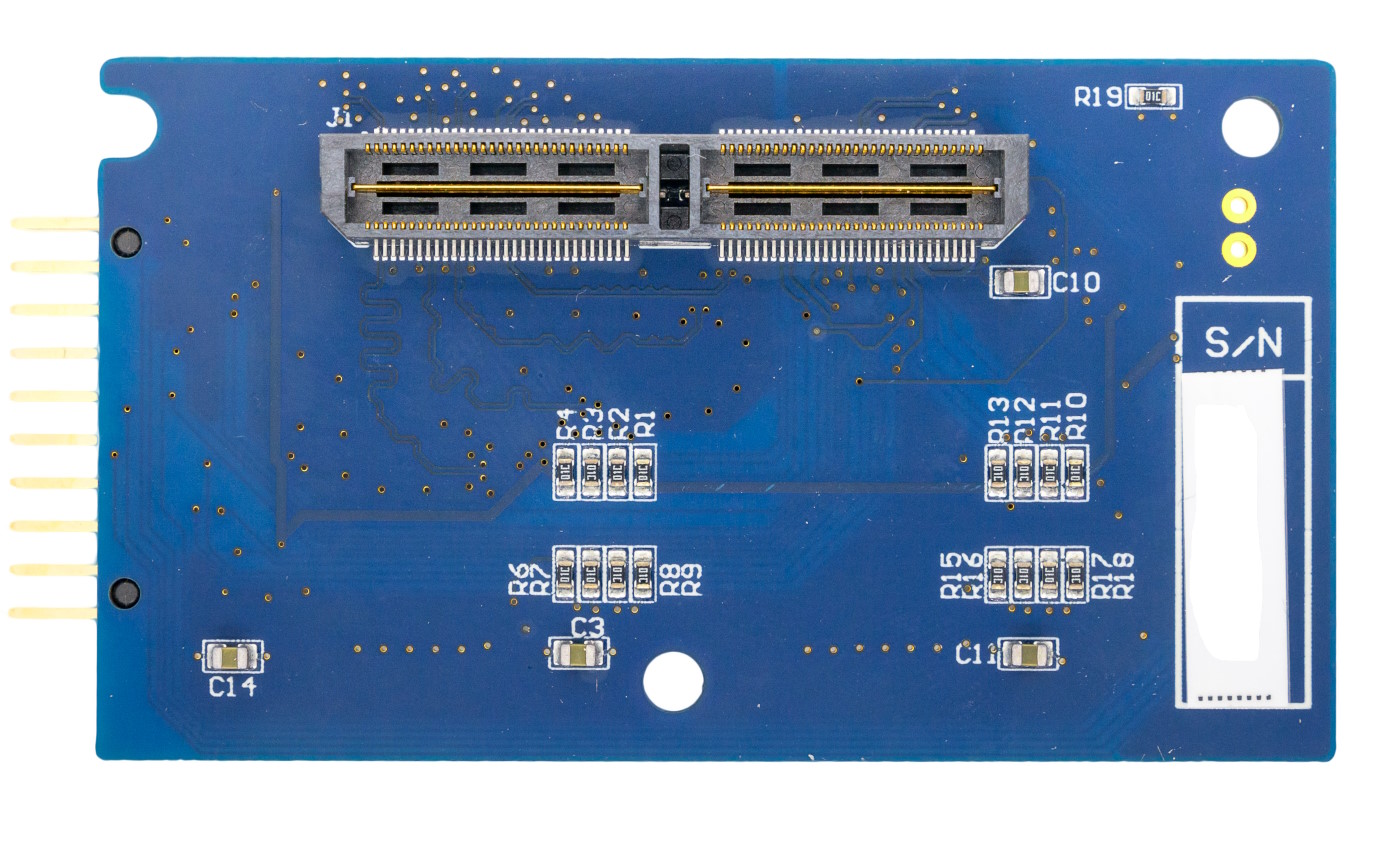

| Host interface | Samtec QSH-060 120-pin connector (Jetson camera connector) |
| Compatible Hosts | Lattice Holoscan Sensor Bridge, Jetson AGX Orin/Xavier |
| Expansion interface | GPIO, I2C, SPI header (1.8V) |
| Power input | 3.3V, 1.8V supplied via host connector |
| Board dimensions | 91 mm x 52 mm |
| Mounting | via included spacers and screws |
| Operating temperature | 0°C - 60°C |
Ordering information
Please contact us for more technical and ordering information.
